Agricultural machinery

with 6"~ Flange connection

Hand lever can be positioned on the left or right, handle part can be adjusted four times in 90 increments, clamping path, clamping strength and closing force are infinitely adjustable, secured against self-loosening, ventilation via 1/2" ball valve.

Hand lever can be positioned on the left or right, handle part can be adjusted four times in 90 increments, clamping path, clamping strength and closing force are infinitely adjustable, secured against self-loosening, ventilation via 1/2" ball valve.

The quick coupler has a 6-inch flange connection with a hole pattern of 150 x 150 mm.

For welding on all attachments,strong design with a width of 200 mm. Delivery: 1 pair

​Quick and easy coupling and uncoupling for implements on category 2 (85 cm) and 3 (102 cm) front loaders. The upper mounting bolts can be repositioned to allow individual tilt angle adjustment. The quick-change frame also has a mechanical central locking system. Mounting pins on the front loader side 30 mm, mounting shaft on the implement side 40 mm, mounting width of the front loader arm minimum 855 mm inside and maximum 1120 mm outside, locking pin Ø 20 mm, total width 1165 mm, weight 57 kg. With a load centre of gravity of 800 mm, the load capacity is approx. 3000 kg.The quick-change frame is suitable as a replacement for OEM front loader change frames.

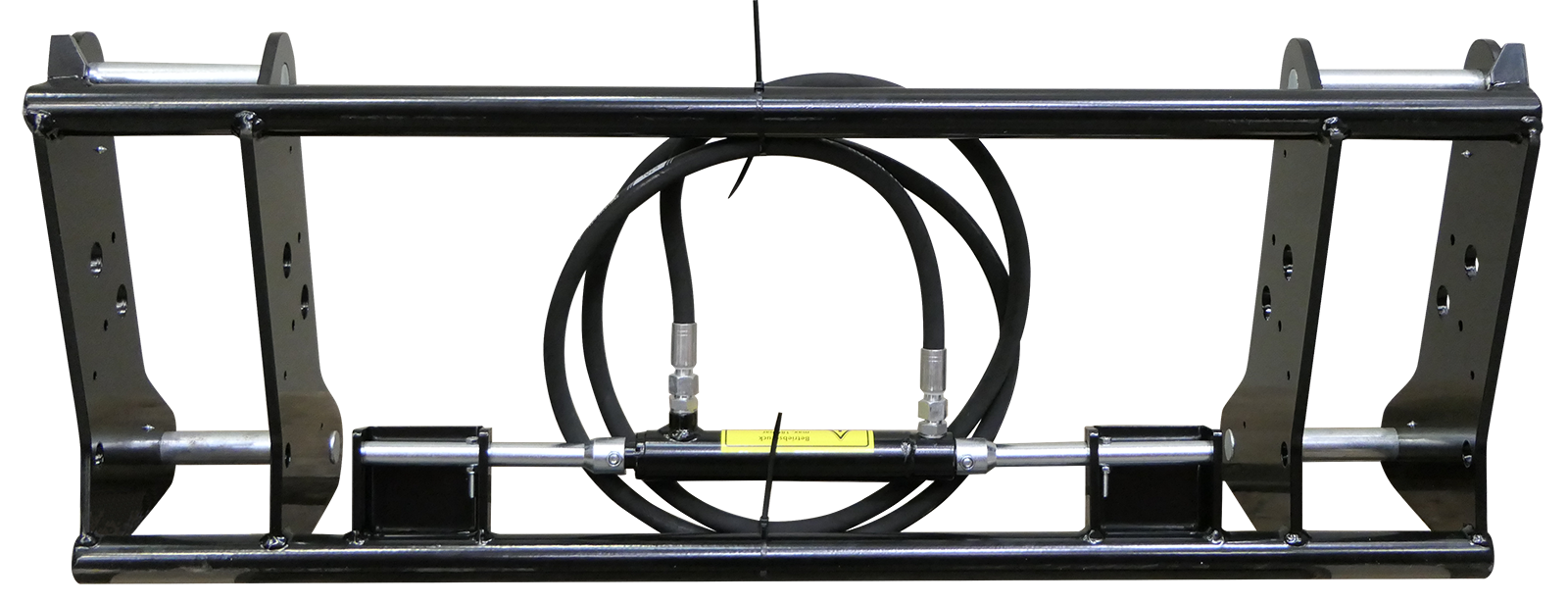

​Quick and easy coupling and uncoupling for implements on category 2 (85 cm) and 3 (102 cm) front loaders. The upper mounting bolts allow individual tilt angle adjustment by repositioning. The quick-change frame also has a hydraulic locking mechanism. The hydraulic hose lines with a length of 1.5 m are included in the scope of delivery. The lines have a connection with an M18x1.5 mm union nut - 12L connection. Mounting pin on the front loader side 30 mm, mounting shaft on the implement side 40 mm, mounting width of the front loader arm minimum 855 mm inside and maximum 1120 mm outside, locking pin Ø 20 mm, total width 1165 mm, weight 53 kg. With a load centre of gravity of 800 mm, the load capacity is approx. 3000 kg.The quick-change frame is suitable as a replacement for OEM front loader change frames.

Quick-release fastener with side lever for car towbars. The base plate with 4 screw holes (100x43mm) makes it easy to add a tray, box or similar.

for inner tube

for outer tube

New version

Nitrite, amine and phosphate-free additive for the cooler. Protects the cooler from frost, corrosion and increases the boiling point of the water. Suitable for aluminum engines.Dilutable: ~Antifreeze: water 1:1  - up to -38 °C1:2 - up to -17 °C1:3 - up to -11 °C

Connector: 38.5mm

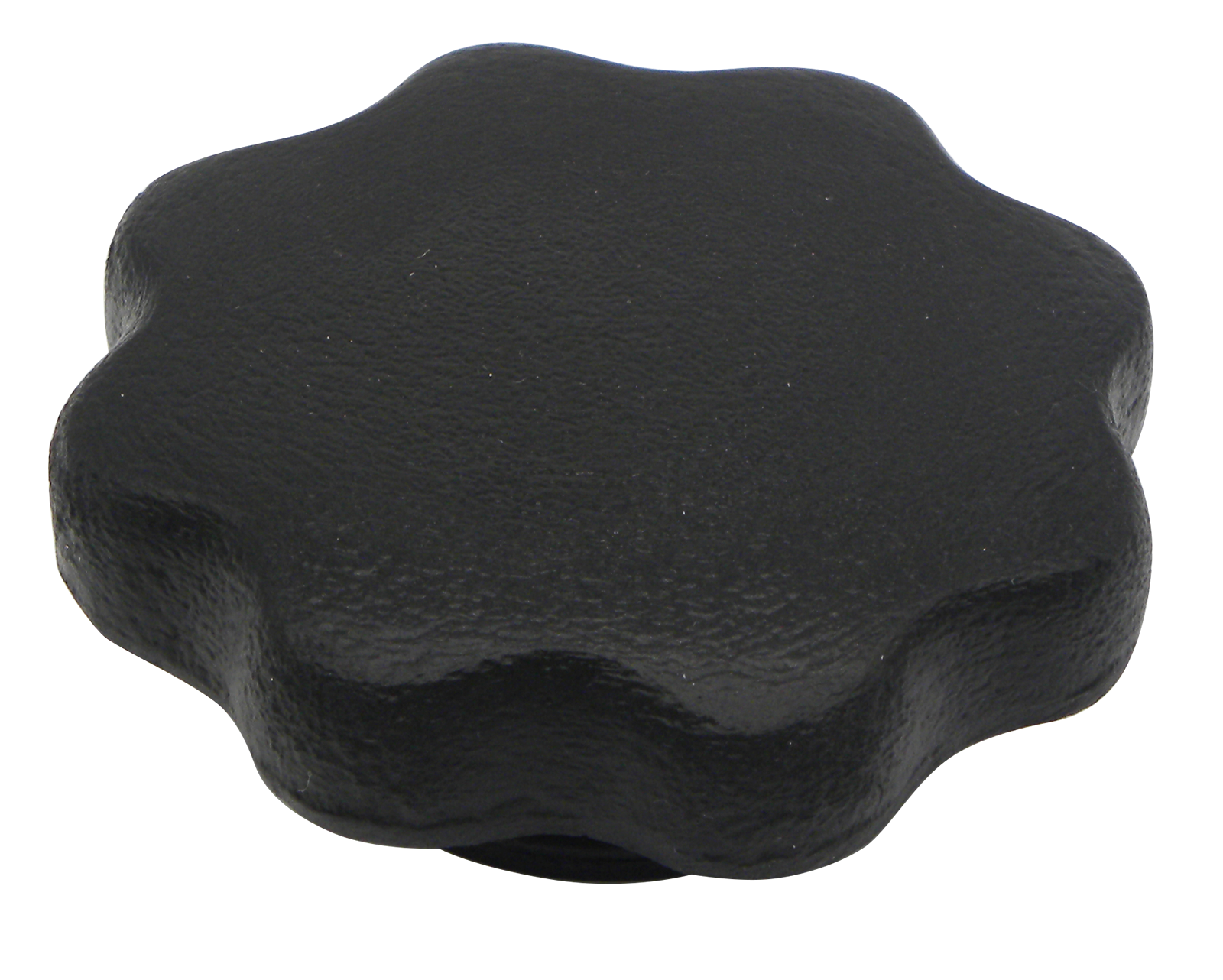

Suitable for Steyr

Suitable for Steyr 8000, 8100 series for overflow connector on the left!

suitable for Steyr

Socket : 69mm ~

Short version

Long version

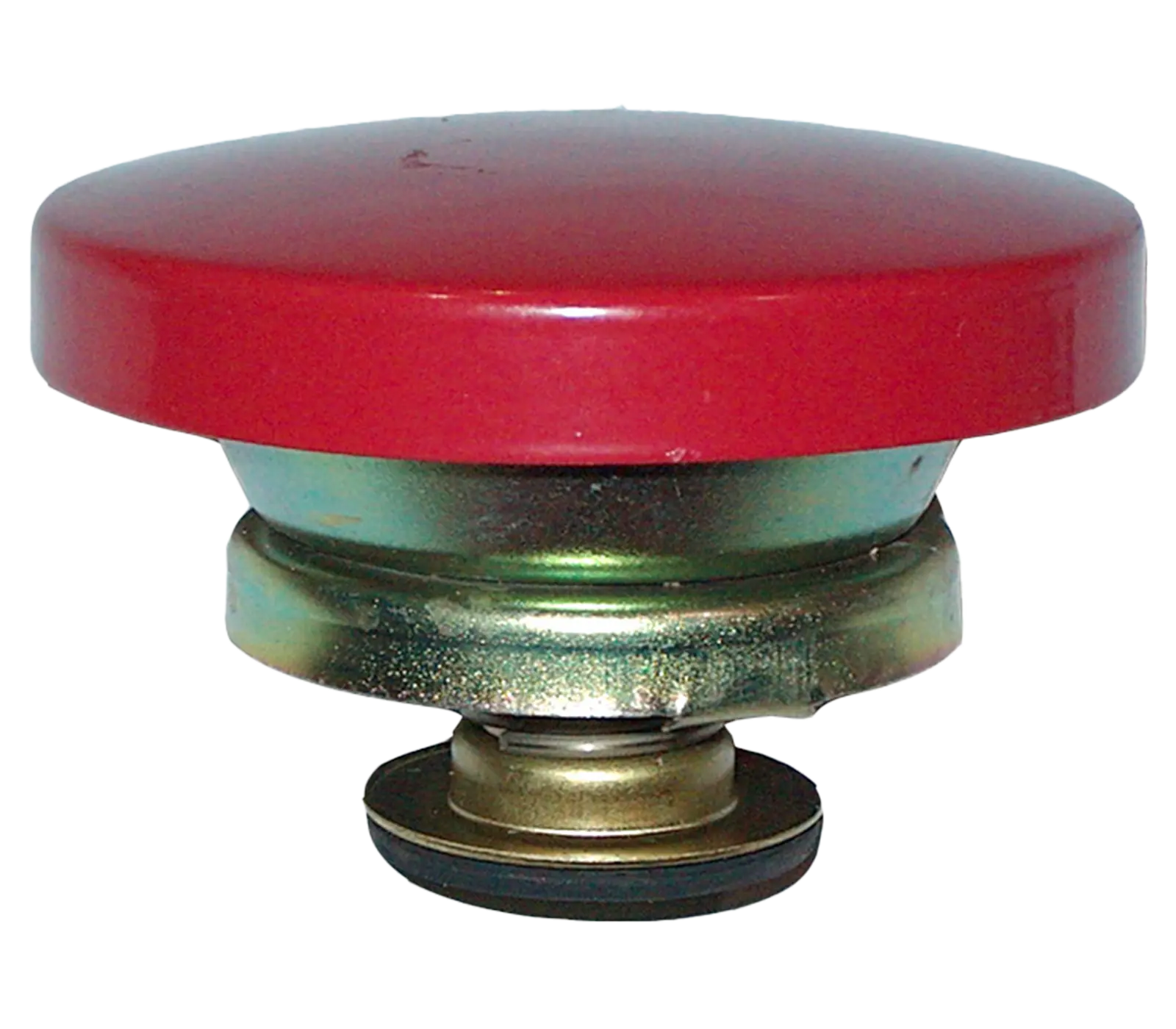

Passend zu Massey Ferguson Serie 200, 500

Suitable for Lindner

For original coolers!!Diameter: 48 mm

for filler neck in the middle with return valve
