Agricultural machinery

Verriegelungssatz für die Heckscheibe

Fritzmeier cabin: Compact A 206

Color: Clear

Color: Green tinted

Color: Green tinted

Color green

For use in the compressed air system on the tractor/tractor for coupling a standard air hose with a Euro coupling NW 7.2.For example, for filling tires, blowing out the radiator, the cab or for blowing off attachments before road transport and many other possible applications.

Faux leather cover, fastening on both sides of the fender with twist locks. Dimensions: seat approx. 50x25cm, height approx. 9 cm.

Red color

93x54x36mm

Unterlenkerbüchse für Fangbüchse

for catch can

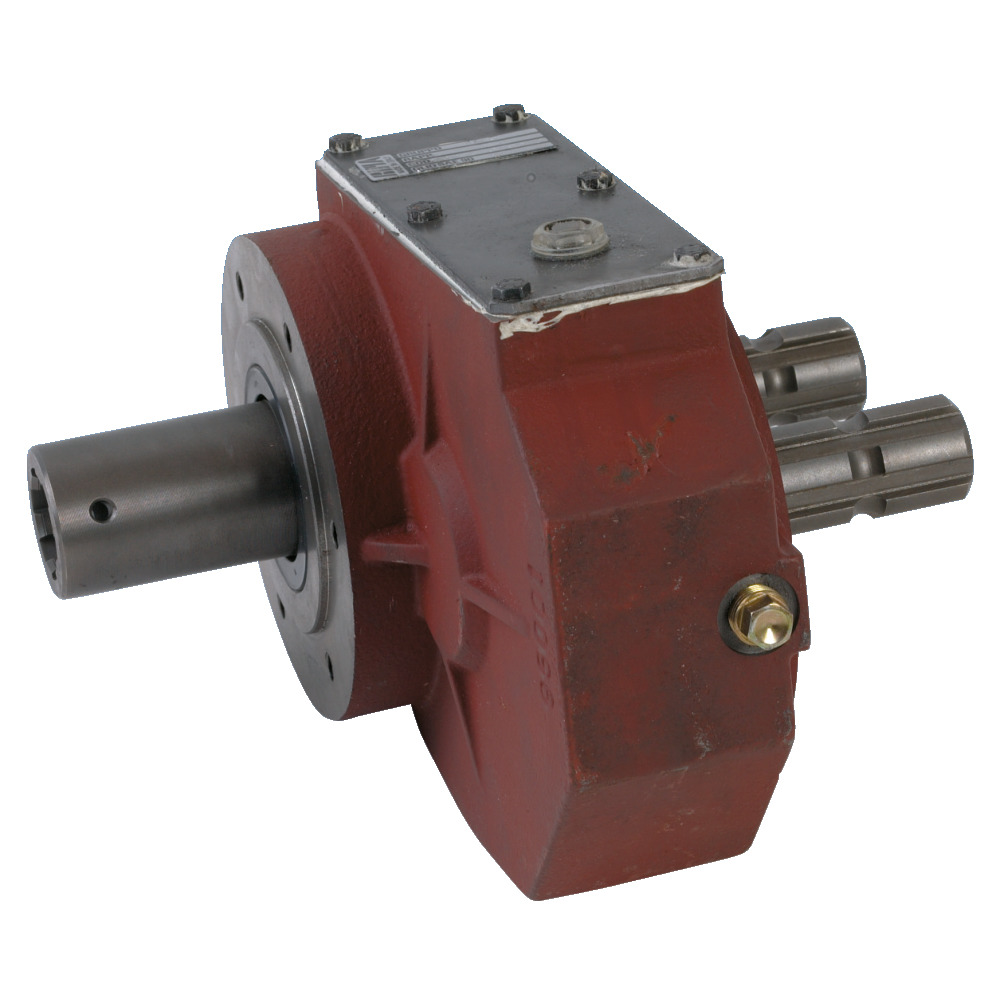

Particularly suitable for attachment to the front PTO shaft to change the direction of rotation and reduce the speed from 1000 rpm to 526 rpm. The transmission is mounted on the tractor side.Input Y:PTO shaft stub or internal toothing540/1000 rpm, 26.4/51.5 kW, 477/928 NmConnection 1 3/8x6, internal or external toothingPossibility with through drive 1:1 (direction of rotation constant).Output X:284/ 526 rpm, 482/895 NmConnection 1 3/8x6 external toothingReversal of direction of rotationIn general, torque peaks up to 2 times the nominal torque do not cause any damage to the individual gear components. However, complete integrity can only be guaranteed by a suitable safety device.

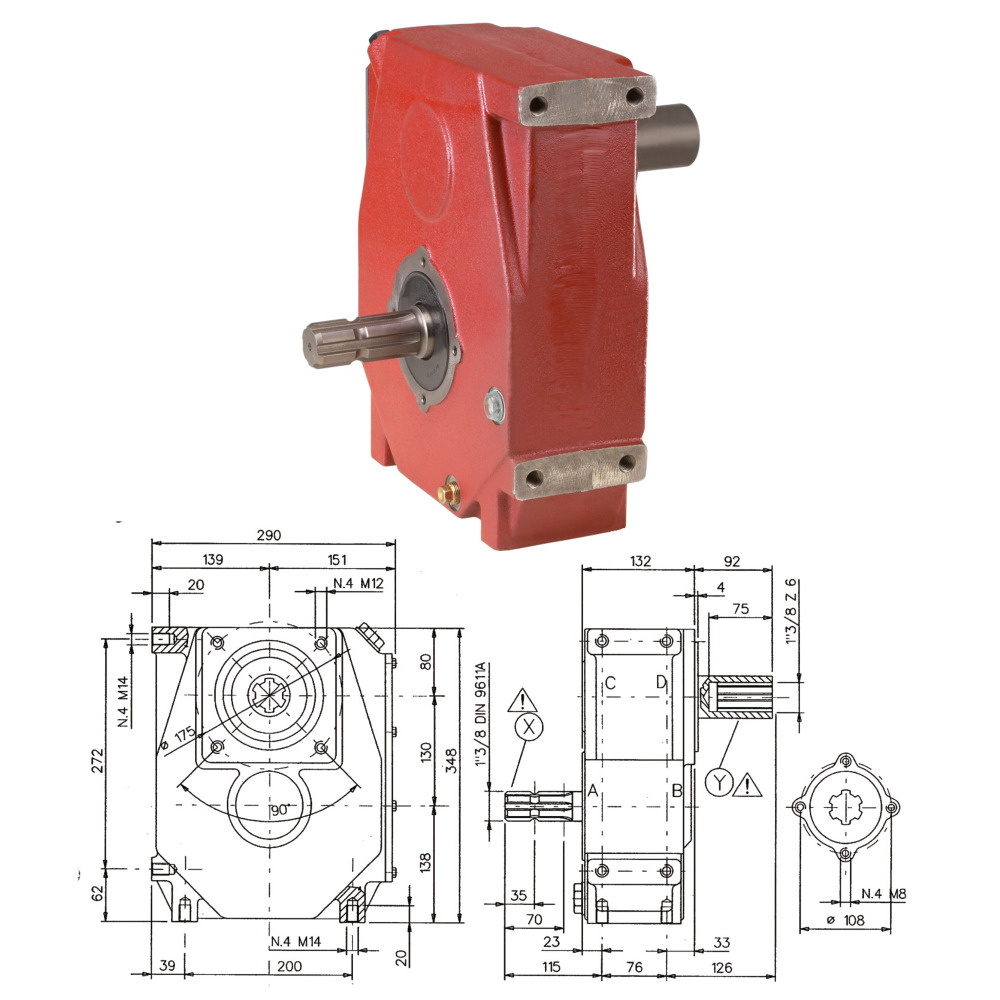

Especially suitable for the front PTO to change the direction of rotation and reduce the speed from 1000 rpm to 526 rpm. The gearbox is installed on the device side.Input Y:540/1000 rpm26.4/39.7 kW 477/386 NmConnection 1 3/8x6Output X:284/526 rpm895/725 NmConnection 1 3/8x6 inner profile Reversal of direction of rotationPossibility with through drive 1:1 (direction of rotation remains the same). In general, torque peaks of up to 2 times the nominal torque do not cause any damage to the individual gear components. However, complete integrity can only be guaranteed by a suitable safety device.

​The 95000 series reduction gearbox is a compact gearbox designed for use with hydraulic motors. The gearbox has a reduction ratio of 2:1, which means that the speed at the output of the gearbox is 2 times slower than the speed at the input. The direction of rotation of the output shaft is the reverse of the direction of rotation of the input shaft (viewed at the visible shaft end). The gearbox is equipped with a robust aluminium housing. The input side has a bore with a diameter of 25 mm and a keyway of 8 mm. The connecting flange is suitable for oil motors with an SAE-A flange.The output side is a hollow shaft with a diameter of 35 mm and a keyway of 10 mm. Four M10 holes with a bolt circle diameter of 110 mm are arranged on the output side for fastening the gearbox. Please fill up and check the oil level before commissioning the gearbox. The maximum power transmission is 10 kW.Compact and robust High-quality workmanship High torque Long service life Universal application possibilities

​The 96071 series reduction gearbox is a compact gearbox designed for use with hydraulic motors. The gearbox has a reduction ratio of 3:1, which means that the speed at the output of the gearbox is 3 times slower than the speed at the input. The direction of rotation of the output shaft is the reverse of the direction of rotation of the input shaft (viewed at the visible shaft end). The gearbox is equipped with a robust aluminium housing. The input side has a bore with a diameter of 25 mm and a keyway of 8 mm. The connecting flange is suitable for oil motors with an SAE-A flange.The output side is a hollow shaft with a diameter of 35 mm and a keyway of 10 mm. Four M12 holes with a bolt circle diameter of 110 mm are arranged on the output side for fastening the gearbox. Please fill up and check the oil level before commissioning the gearbox. The maximum power transmission is 20 kW.Compact and robust High-quality workmanship High torque Long service life Universal application possibilities

52x12cm

With screw M5.

With screw hole 6 mm.
