Agricultural machinery

​Top knive for double knife bar Busatis with a total number of 23 blades. Of these, 4 pcs. blades with knob for holding the knife guide arms. The pitch of the blades from blade centre to blade centre is 76 mm. The blade is supplied complete with the riveted upper cutter head, on the left-hand side when viewed in the direction of travel. Suitable for Bucher and Reform Kombi M12 motorised mowers with Busatis double blade mower. Overall length with cutterhead: 179 cm Length of cutter back: 173 cm Cutter head on the left in the direction of travel, 56 mm projection over the back of the blade Cutterhead length: 232 mm Total number of blades: 23, of which 4 blades with knobPosition of the blades with knob starting from the cutterhead: 2nd, 8th, 15th and 21st blade Blade pitch (blade centre to blade centre): 76 mm

​Top knive for double knife bar Busatis with a total number of 23 blades. Of these, 4 pcs. blades with knob for holding the knife guide arms. The pitch of the blades from blade centre to blade centre is 76,2 mm. The blade is supplied complete with the riveted upper cutter head, on the left-hand side when viewed in the direction of travel. Suitable for Nussmüller-Rasant Junior 90 motorised mowers with Busatis double blade mower.Cutting width: 167 cm Overall length with cutterhead: 176 cm Length of cutter back: 173 cm Cutter head on the left in the direction of travel, 30 mm projection over the back of the blade Cutterhead length: 290 mm Total number of blades: 23, of which 4 blades with knobPosition of the blades with knob starting from the cutterhead: 3rd, 9th, 15th and 21st blade Blade pitch (blade centre to blade centre): 76,2 mm

Top knive for double knife bar bidux with a total number of 27 blades. Of these, 5 pcs. blades with knob for holding the knife guide arms. The pitch of the blades from blade centre to blade centre is 76 mm. The blade is supplied complete with the riveted upper cutter head, on the left-hand side when viewed in the direction of travel. Upper knife, 27 blades, 5 blades with knobTotal length with knife head: 1967 mmLength of knife back: 1880 mmKnife head 5840.040.01, 345.0550Protrusion of knife head over knife back: 90 mmLength of knife head: 400 mmTang cutter head: 18 mmPosition of the blades with knob starting from the cutter head: 3rd, 9th,15th, 21th and 26th. bladeBlade pitch (blade center to blade center): 70 mm

​Top knife for the bidux ESM double-blade bar, compatible with Aebi, IBEX and Köppl, with a total of 29 blades. Five of these are blades with knob for attaching the knife guide arms. The spacing between the centres of the blades is 70 mm. The knive is supplied without the blade head, which is screwed onto the left-hand side when viewed in the direction of travel. The upper-knive-head is secured with 3 M8 fixing screws. The blades with knob are positioned at the 3rd, 9th, 15th, 21st and 27th blades.

Top knife for the bidux double-blade bar system, with a total of 32 blades. Of these, 6 are blades with knob for mounting the blade guide arms. The spacing between the centres of the blades is 70 mm. The knife is supplied complete with the riveted upper blade head, located on the left-hand side when viewed in the direction of travel.Suitable for the Nussmüller-Rasant with bidux double-blade mower.Total length including blade head: 230 cmLength of blade backs: 223 cmBlade head on the left-hand side when viewed in the direction of travel, offset 68 mm outwards; blade head length: 380 mmTotal number of blades: 32, of which 6 are blades with knob, position of the blades with knob relative to the blade head: 3rd, 9th, 15th, 22nd, 26th and 31st bladesBlade spacing (centre to centre): 70 mm

Color: Clear

Color: Clear

hardened.

Top link bar with ball suitable for New Holland and Steyr Profi. The ball has a diameter of 25mm and the total length of the bracket is 340mm. The bracket is attached to the top link with an M10 screw. The inner width of the eyelets for attachment to the top link is 50mm. The material thickness of the bracket is 12mm.

Top link bracket 255mm universally usable Bore diameter 10.5 mmLength from center of hole on bracket inside 255mm

Top link bracket 330mm universally usable Bore diameter 10.5 mmLength from center of hole on bracket inside 330mm

Reduzierhülse für Oberlenker

For welding on.

with right-hand thread M27x3, thread length: 165mm

with thread M30x3, thread length: 170mm, total length: 345mm

with screw M10

Telescopic top link heavy version with lockable telescopic suspension The telescopic top link heavy version with lockable telescopic suspension is the ideal accessory for tractors up to max. 80kW, as well as for attachments with a max. weight of 1000kg. It offers a high level of stability and safety when working with attachments and ensures optimal working ergonomics.High stability and safetyOptimal working ergonomicsRobust and durable construction< /li>Easy to use Quick coupling system Safety system The telescopic top link is a valuable accessory for every tractor driver who wants to work safely with attachments and want to do it ergonomically. It is the ideal accessory for tractors up to max. 80kW, as well as for attachments with a max. weight of 1000kg. Here are the technical data:Power: max. 80kWWeight: max 1000kgLength: 450-650mmMaterial: steel

Cat.2, 25 x 100 mm

with two grease nipples

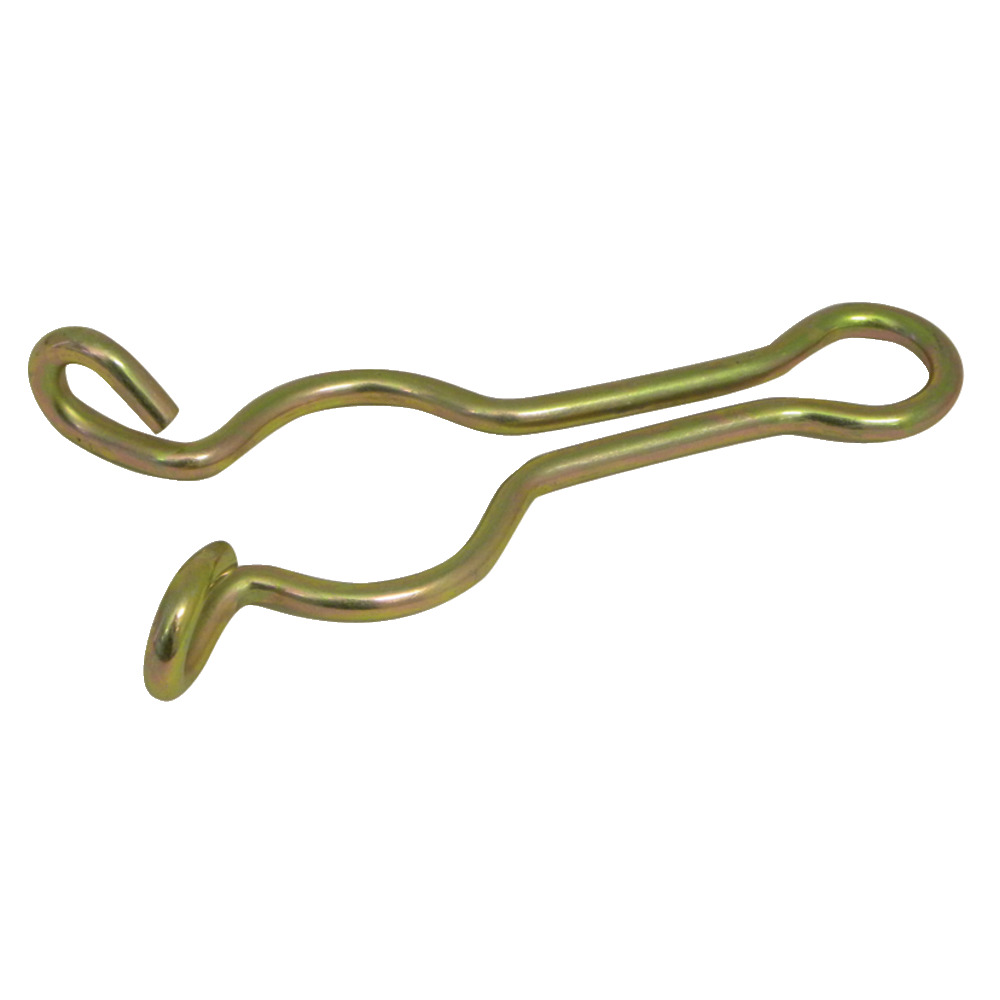

Galvanized, made of spring steel.
