Suitable for esm

Outer shoe plate suitable for Reform Metrac with Busatis mower

Suitable for BUSATIS mower BM 1102, BM 1124, BM 1135 and BM 1260. Original ESM spare part.

Outsole 150x50x6 mm

For ESM universal folding beam suitable for Reform, BCS, Aebi, Tielbrger, Viking and many other brands.

Outsole holder

For ESM universal folding beam suitable for Reform, BCS, Aebi, Tielbrger, Viking and many other brands.

Plastic plain bearing �27.3x�30/38x20mm, 324.2930

Plastic plain bearing for rocker arm on double knife horizontal swing mower drive. Suitable for Busatis, Busatis bidux and ESM double knife bars.

Raised countersunk screw M10x43 for crank drive

Raised countersunk screw for crank drive system Busatis and system bidux.

Rear fescue lever complete for lower knife, 267.1960

Rear swing arm complete with plain bearing, swing pin and lower blade ball joint. Suitable for Busatis and ESM double-blade mowers with hydraulic swing arm drive. The hole in the lower blade ball joint for mounting the cutterhead pivot has a diameter of 16.4 mm.

Reinforcement bar

For ESM universal folding beam suitable for Reform, BCS, Aebi, Tielbrger, Viking and many other brands.

Reinforcement strip 6 mm

Suitable for ESM universal beam C

Reinforcement strip suitable for Agria, 300x20x3mm

Reinforcement strip suitable for Agria middle cut finger bars with 4 threaded holes M8.

Rocker arm bottom knife bidux system, instead of ESM 267.6020

Rocker arm for the bidux system drive, completely pre-assembled with ball joint and rocker bolt.

Rocker arm ESM 267.0410 for municipal beams

Original spare part from ESM. Rocker arm for ESM communal beams suitable for many device manufacturers.

Rocker arm upper knife bidux system, instead of ESM 267.6010

Rocker arm for the bidux system drive, completely pre-assembled with ball joint and rocker bolt.

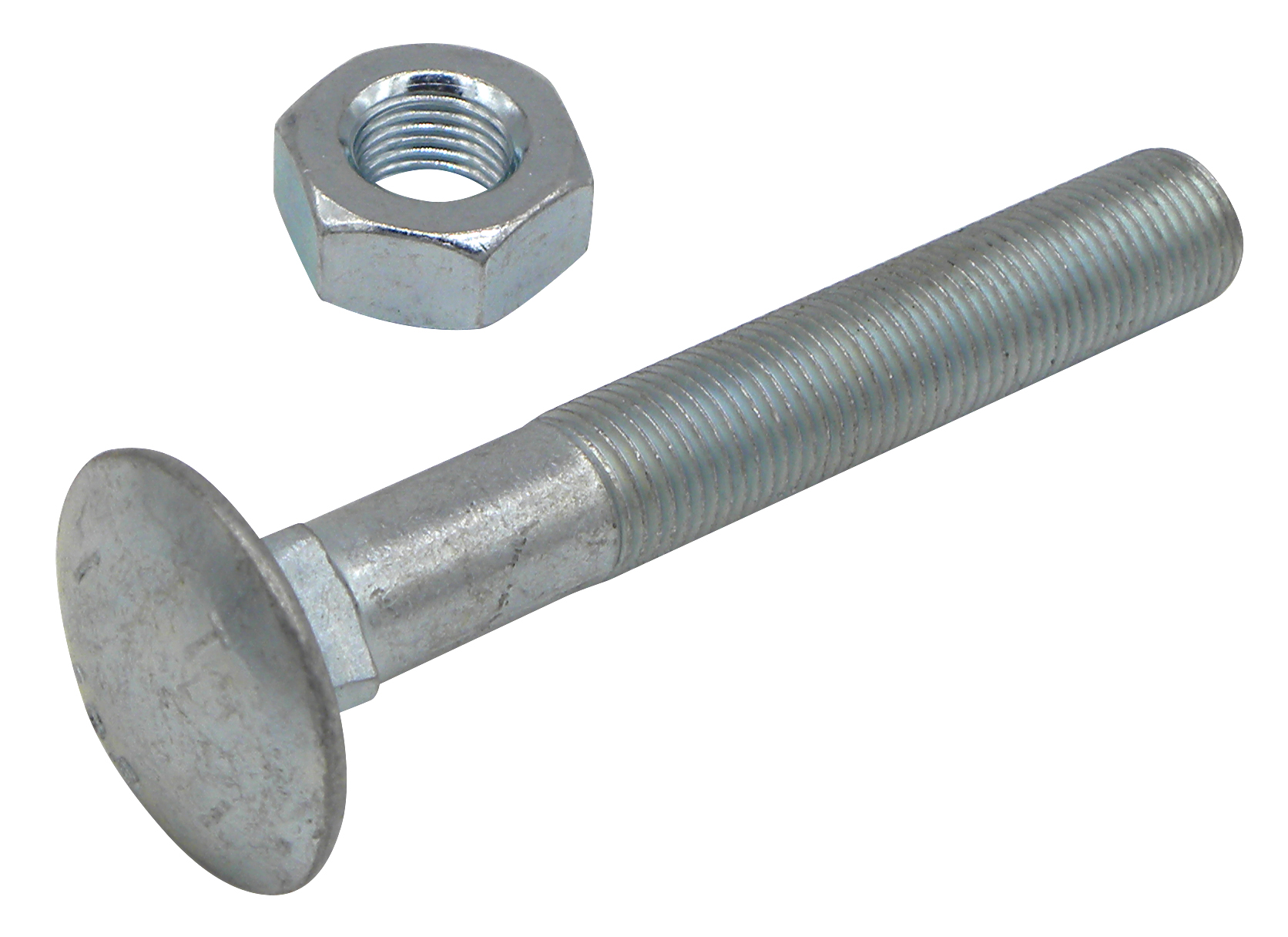

Screw complete

For ESM universal folding beam suitable for Reform, BCS, Aebi, Tielbrger, Viking and many other brands.

Set knive head for bottom knife bidux-System to replace ESM 247.2730

Knife head, complete with fixing screws, ball joints and pivot pins for the bidux double-blade system. Suitable for double-blade mowers from Aebi, ESM, IBEX and Köppl. The knife head is secured to the bottom blade using the screws included in the set. This means the knife head for the bottom knife can be used interchangeably on several blade sets.

Set knive head for top knife bidux-System to replace ESM 247.2720

Knife head, complete with fixing screws, ball joints and pivot pins for the bidux double-blade system. Suitable for double-blade mowers from Aebi, ESM, IBEX and Köppl. The knife head is secured to the upper blade using the screws included in the set. This means the knife head for the top knife can be used interchangeably on several blade sets.

Special nut Busatis M10

Suitable for BUSATIS mower BM 1102, BM 1124, BM 1135 and BM 1260. Original ESM spare part.

Special nut Busatis M12, length 28,5 mm

Suitable for BUSATIS mower BM 1102, BM 1124, BM 1135 and BM 1260. Original ESM spare part.

Spring plate bidux system

Swing bolt 267.0670 cpl. to Busatis/ESM

Swing bolt complete for Busatis/ESM double knife mowers with horizontal swing arm drive.The swing bolt is screwed onto the rocker arms. By connecting the bearing housings to the drive, the rocker arms are moved forwards and backwards. This results in the upper knife moving in opposite directions to the lower knife and this ensures a clean cut.

Upper knife ball joint bidux left

Connection joint between rocker arm and upper cutter head. Thread M14x1.5, bore 18mm, left

Upper knife ball joint bidux right

Connection joint between rocker arm and upper cutter head. Thread M14x1.5, bore 18mm, right

Wear plate for cutter head, instead of ESM 363.0350

​Wear plate for ESM cutterhead for mower blade drive via a sliding block with an edge length of 38x38mm. The plate is attached to the inside of the cutterhead with 2 pcs. M6 screws on the inside of the cutterhead. When replacing, both wear plates should always be replaced at the same time. Delivery per piece!
