Electric motors

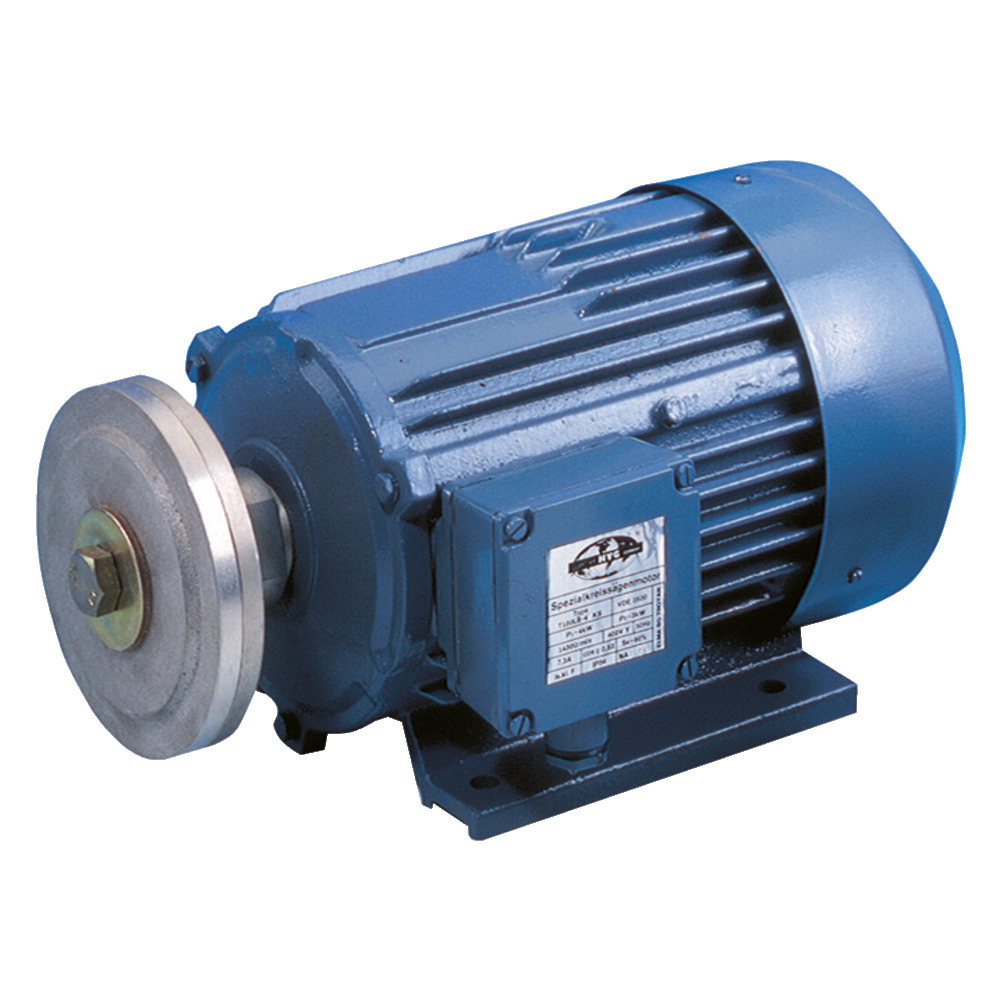

Electric motor with flange for circular saw blades with 30mm bore. Power: 5,5KW /1350U/min,50 Hz, 380V, without switch, with flange, shaft diameter 30mm, height 190mm, width 190/245mm ATTENTION: this motor is not standard for older machines equipped with a star-delta switch. When using the star-delta switch, the switch with order number 46686 must also be used.

1400 rpm, protection class IP55, 400V, without switch.

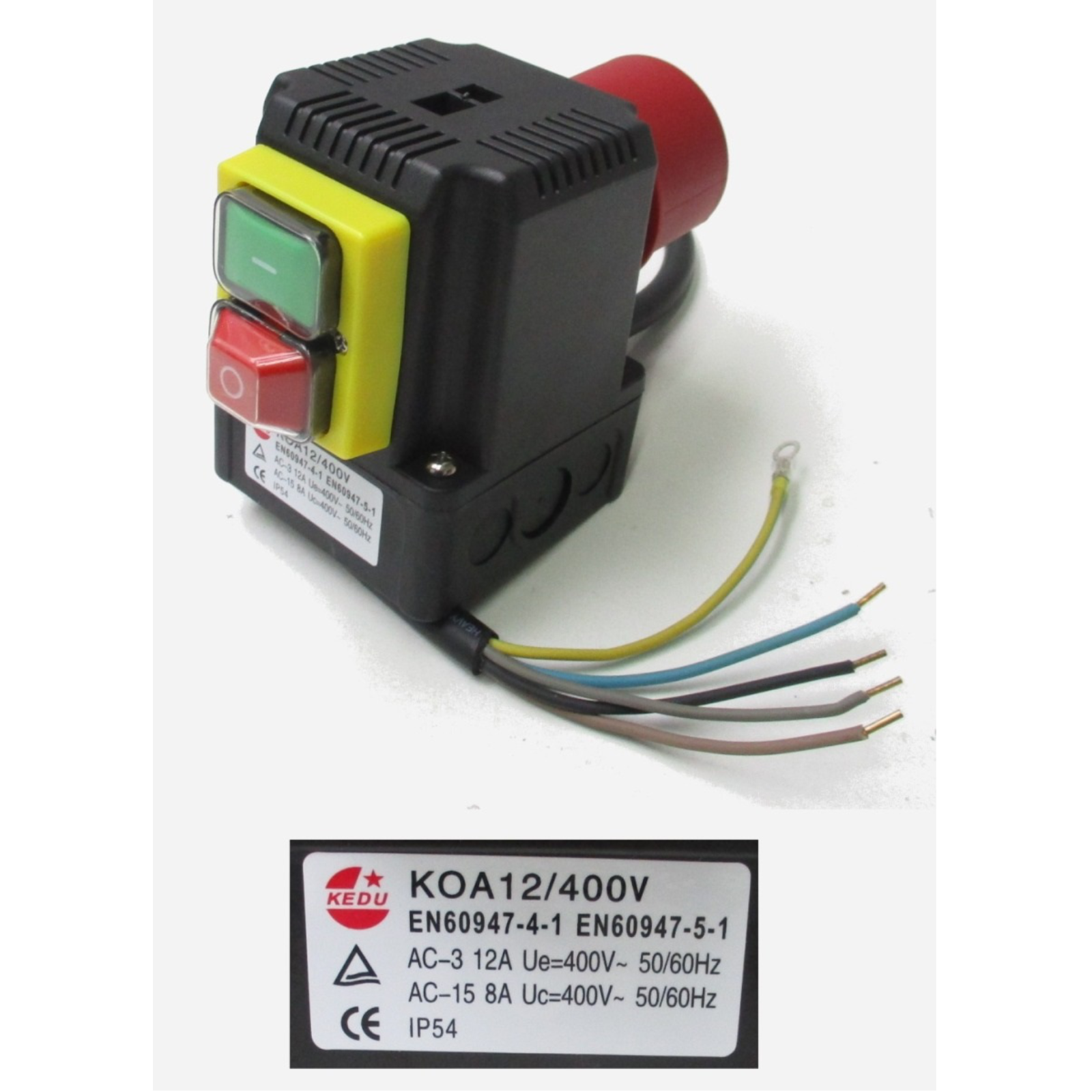

​Switch unit for firewood circular saws and tilting saws with motor brake, On/off switch, 400 V 16 A plug with phase inverter and cable.Compact switch unit with practical phase inverter for reversing the direction of rotation. HCK3T/400VAC-3 12 A, 400 V, 50/60 HzAC-15 8 A, 400 V, 50/60 Hz EN 60947-4-1, EN 60947-5-1Protection class IP 54.

​Switch unit with on/off switch and 400 V 16 A plug with phase inverter and approx. 20 cm cable!Compact switch unit with practical phase inverter for reversing the direction of rotation. Suitable for log splitters HSE 10, 11 and 14 and circular table saw TKS. HCK3T/400VAC-3, 12 A, 400 V, 50 HzAC-15 6 A, 400 V, 50 Hz Protection class IP 54.
