Bondioli & Pavesi Angle gear 2020 with ratio 1:2.78
Bondioli & Pavesi Angle gear 2020 with ratio 1:2.78
Beschreibung

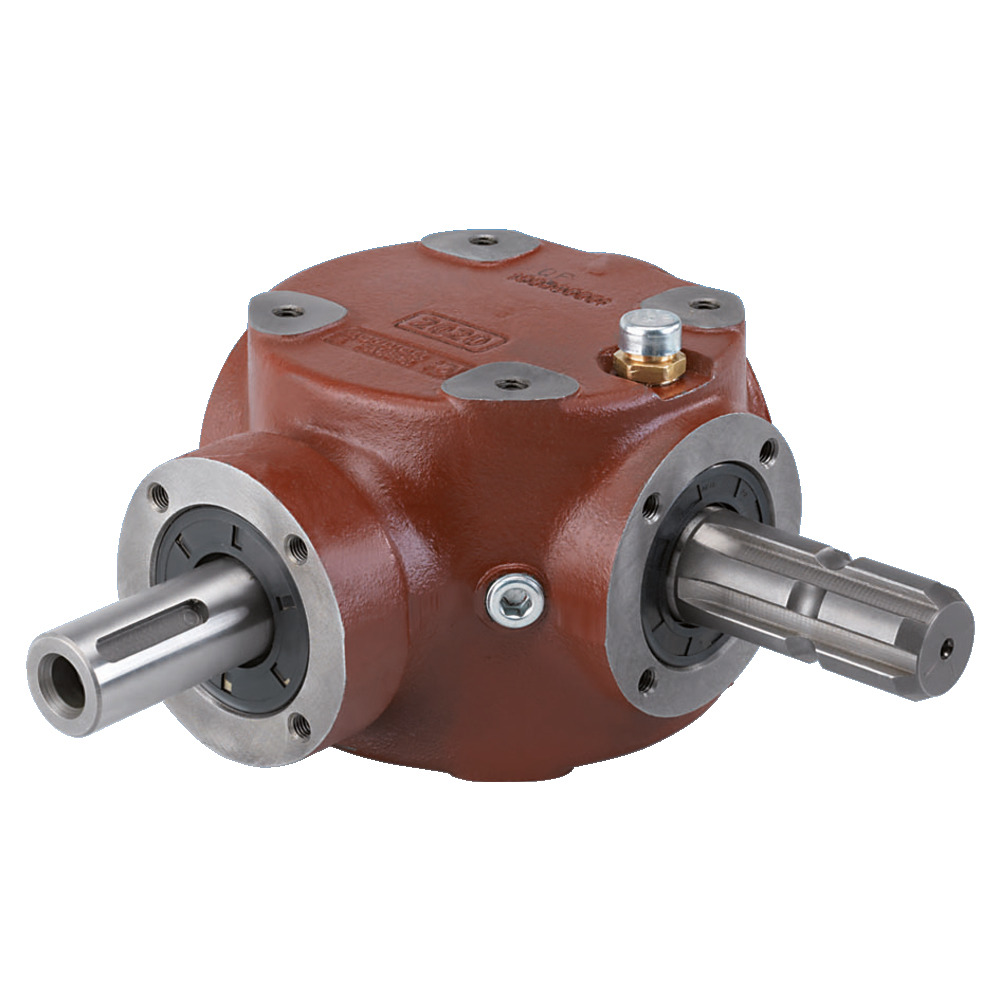

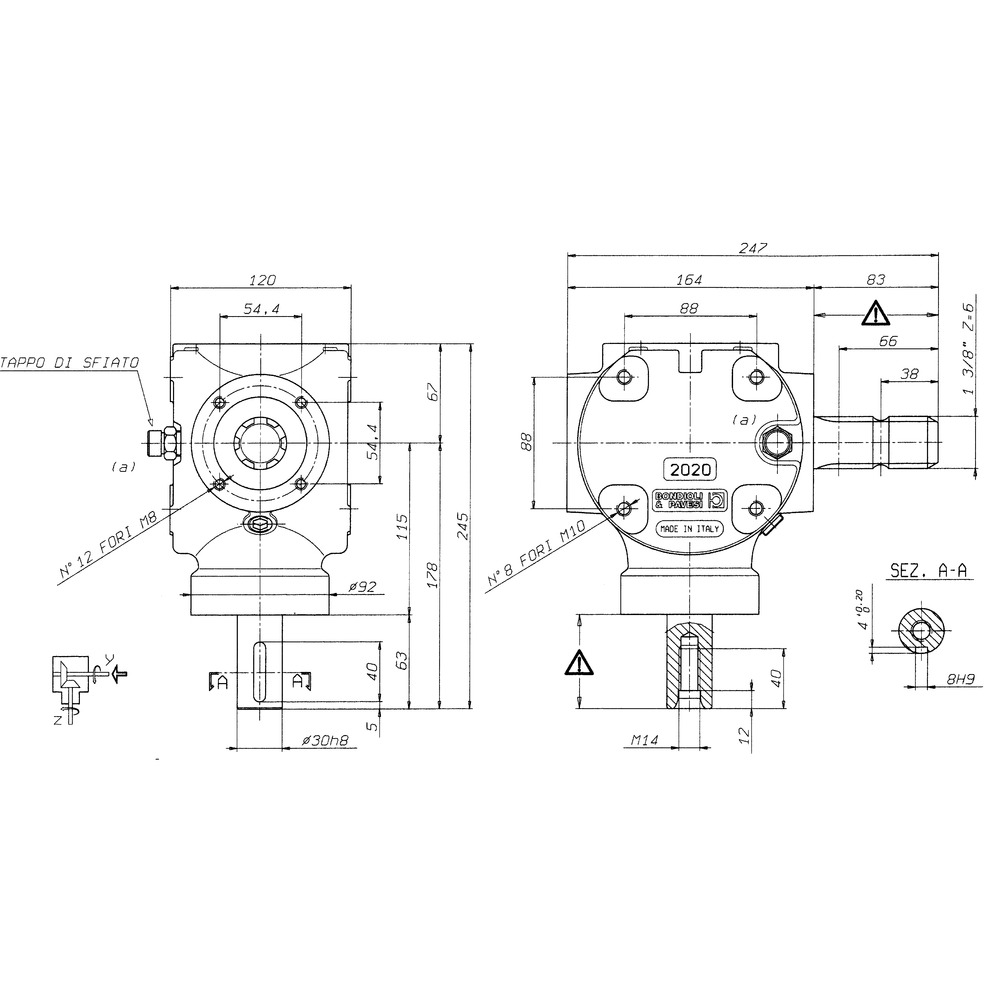

The 2020 angular gearbox is a compact gearbox designed for heavy-duty use. The gearbox has a transmission ratio of 1:2.78, which means that the speed at the output of the gearbox is 2.78 times higher than the speed at the input. The direction of rotation of the output shaft is reversed or the same as the direction of rotation of the input shaft (looking at the visible shaft end). The angular gearbox is equipped with a robust cast housing, a 1 3/8 x 6 PTO profile at the input and an output shaft with a diameter of 25 mm (order no. 65792) and 30 mm (order no. 59917). The gearbox can absorb torque peaks of up to 2 times the nominal torque. We would like to point out that an overload protection device must be used in accordance with the performance data of the gearbox.
The maximum power transmission is 9kW at 540rpm and 14kW at 1000rpm.
- Compact and robust
- High-quality workmanship
- High torque
- Long service life
- Universal applications
| Direction of rotation: | umgekehrt |
|---|---|
| Input speed (rpm): | 540 |
| Output speed (rpm): | 1501 |
| Torque input at 540 rpm (Nm): | 156 |
| Torque input at 1000 rpm (Nm): | 133 |
| Torque output at 540 rpm (Nm): | 56 |
| Torque output at 1000 rpm (Nm): | 48 |
| Translation: | 1 : 2,78 |
| Ø shaft (mm): | 25 |
Hersteller
Bondioli + Pavesi
Im Neugrund 8
64521
Groß-Gerau
DE
[email protected]
MPN:
