Hydraulic crane winch WE 700 with radio
Hydraulic crane winch WE 700 with radio
Produkt-Highlights
- mit Funk Bedienung!
Beschreibung
Product information "Hydraulic crane winch WE 700 with radio"
The light and compact auxiliary winch with radio control, for installation on cable winches or forwarding tongs, log splitters or even on a pole blade, ATV or small forwarding vehicle.
The winch is pre-assembled on a plate with fastening elements that can be easily attached to your device can be mounted.
This crane winch is a robust construction and made for demanding use in the forest.
It is operated via radio on a 12 V control valve with additional manual operation.
Control valve: 12 volts Simply install solenoid valve into a hydraulic circuit
<~cbht />~Valve with built-in pressure transfer and extra return,
<~cbht />~max. 40 liters/minute flow, max. 175 bar, connections 1/2?IG, pressure continuation 1/2?AG.
The maximum tensile force is a full 700 kg at a maximum of 175 bar.
The rope speed is 1 .2 meters / second at 40 liters/min.
Dimensions of the winch approx. 24 x 24 x 15 cm, holding plate with 2 x 17 mm holes with 70 mm hole spacing.
<~cbht />~ Drum: 60 mm inner and 150 mm outer diameter, 50 mm wide.
Winch We-700 with bracket and 20 meters of 5 mm wire rope.
Can be used for anything that needs to be pulled .

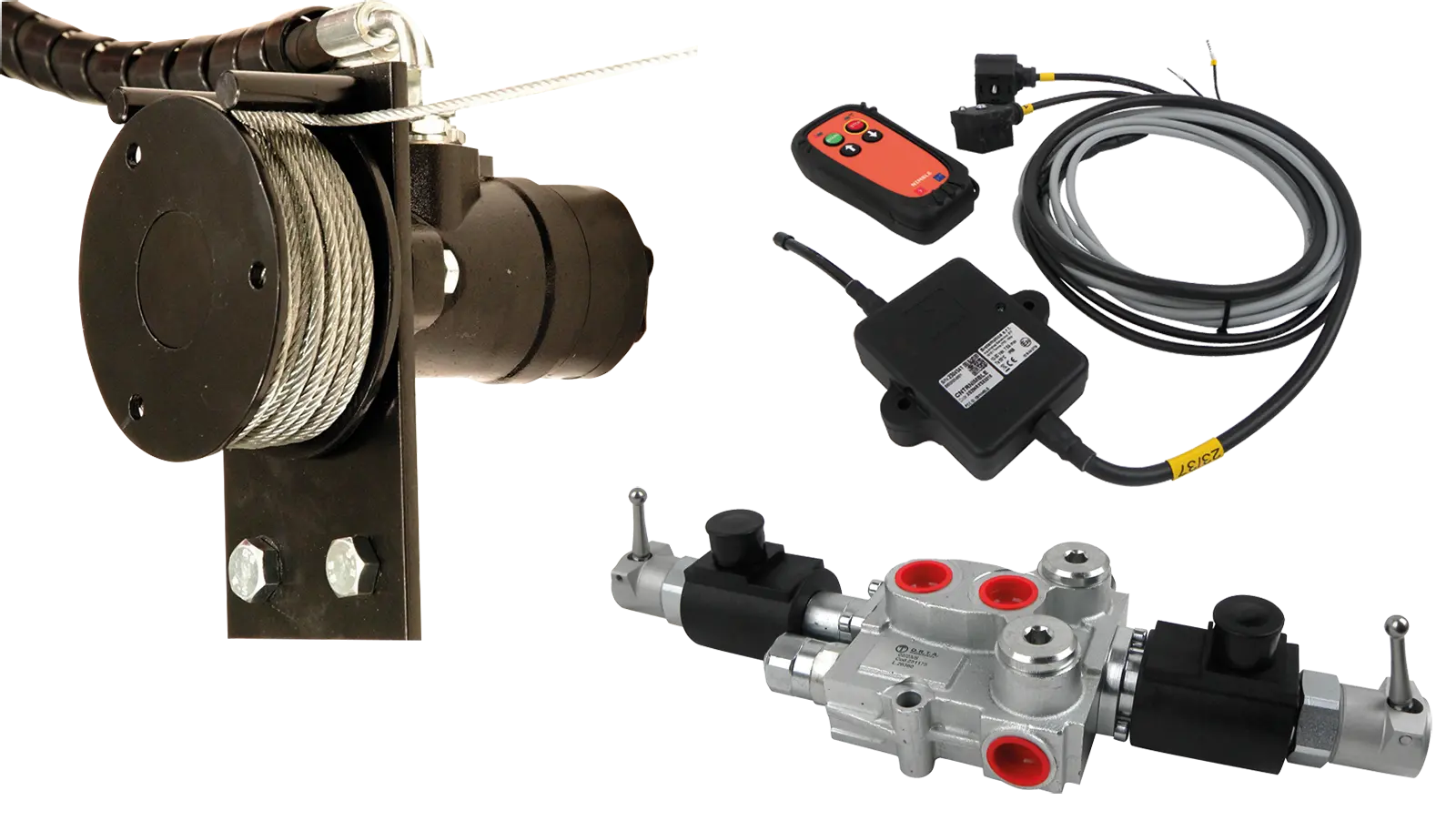

Complete set with hoses and HY plug, electro-magnetic valve

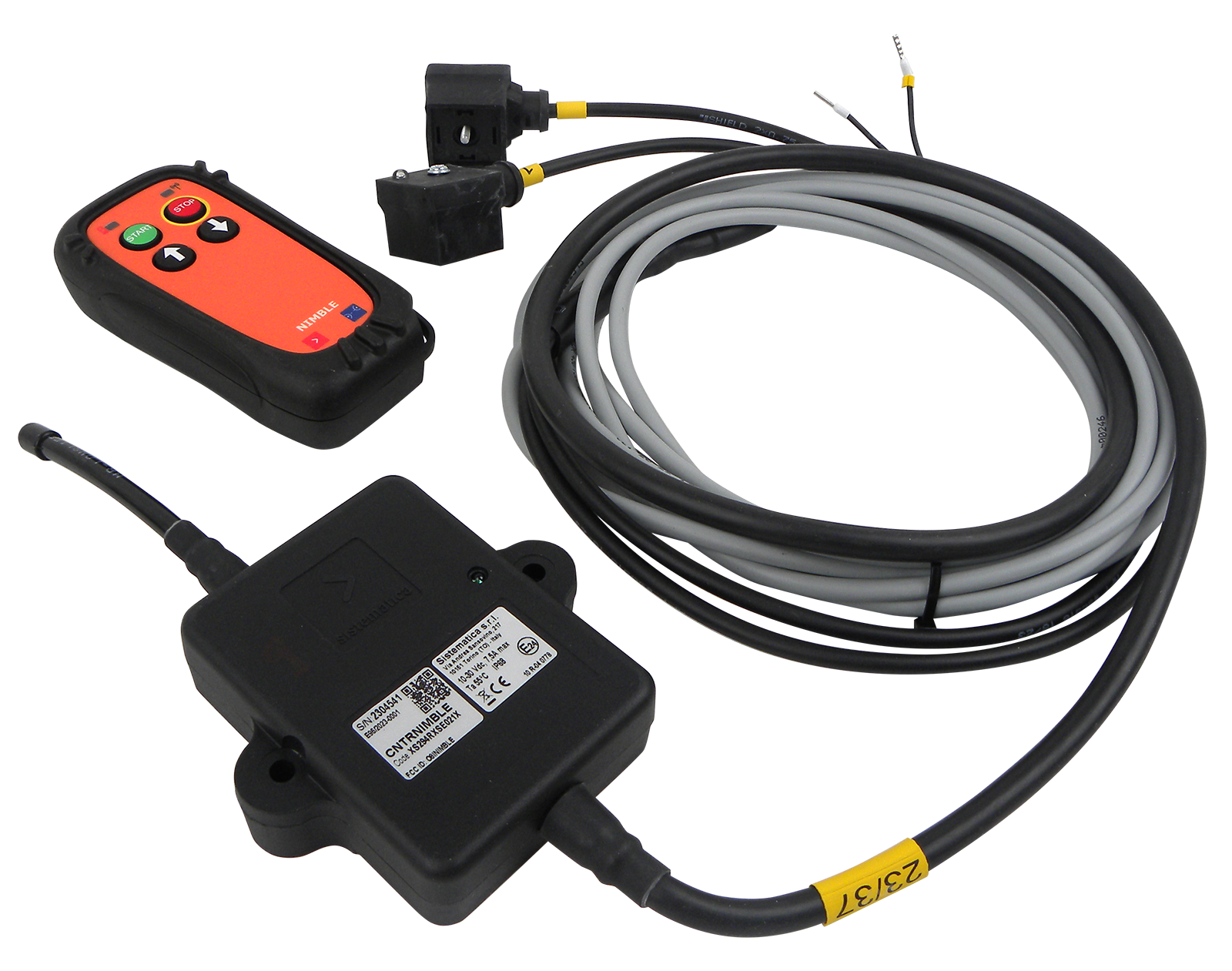

withprofessional radio unitwith 7-pin car plug< /strong> permanently wired.
The winch is pre-assembled on a plate with fastening elements that can be easily attached to your device can be mounted.
This crane winch is a robust construction and made for demanding use in the forest.
It is operated via radio on a 12 V control valve with additional manual operation.
Control valve: 12 volts Simply install solenoid valve into a hydraulic circuit
<~cbht />~Valve with built-in pressure transfer and extra return,
<~cbht />~max. 40 liters/minute flow, max. 175 bar, connections 1/2?IG, pressure continuation 1/2?AG.
The maximum tensile force is a full 700 kg at a maximum of 175 bar.
The rope speed is 1 .2 meters / second at 40 liters/min.
Dimensions of the winch approx. 24 x 24 x 15 cm, holding plate with 2 x 17 mm holes with 70 mm hole spacing.
<~cbht />~ Drum: 60 mm inner and 150 mm outer diameter, 50 mm wide.
Winch We-700 with bracket and 20 meters of 5 mm wire rope.
Can be used for anything that needs to be pulled .
Complete set with hoses and HY plug, electro-magnetic valve
withprofessional radio unitwith 7-pin car plug< /strong> permanently wired.
| Suchnummer: | 117390 |
|---|
