Agricultural machinery

sleeve

sleeve

Plug

According to ISO 7241-1A, push-pull versionsleeve

According to ISO 7241-1A, push-pull versionplug

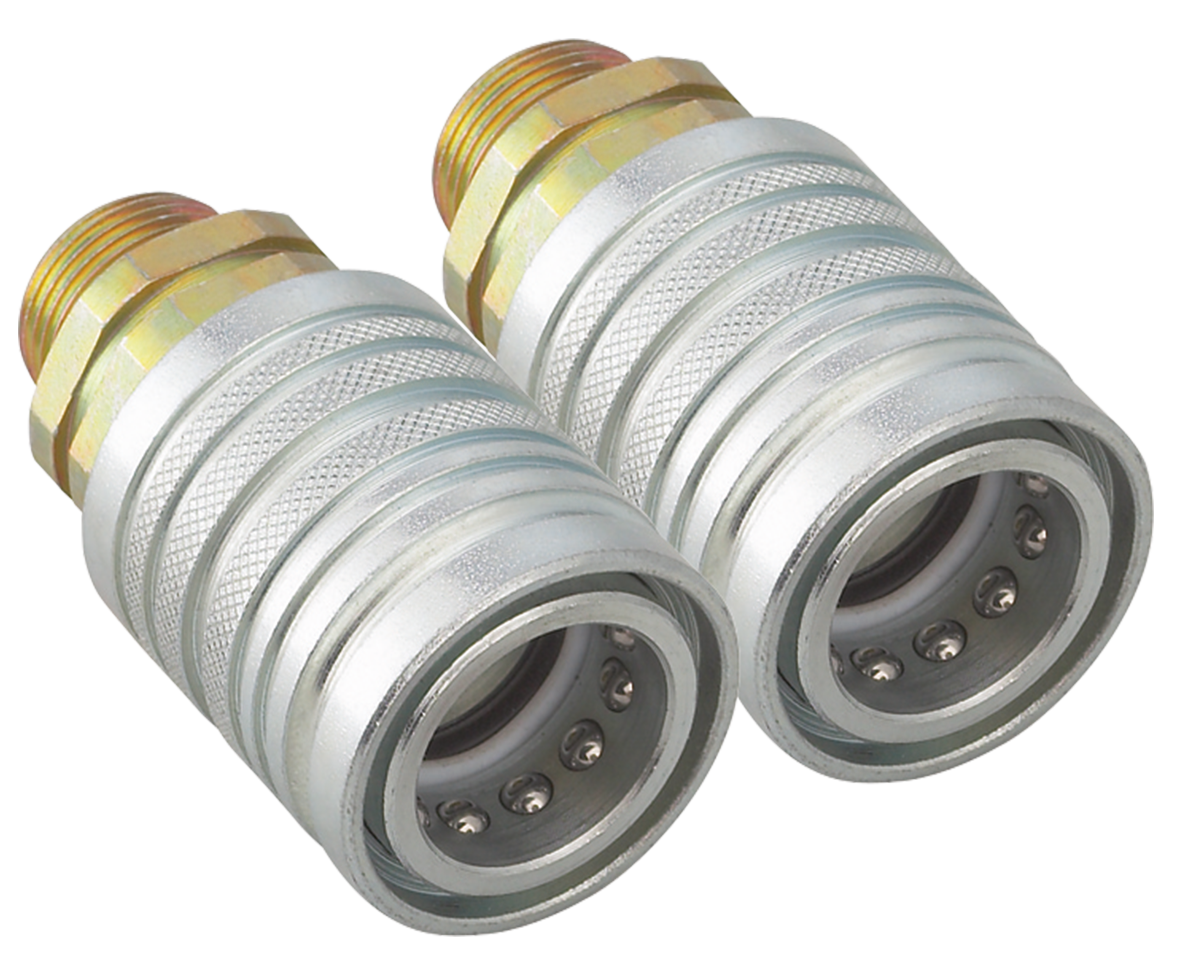

Quick-release coupling female in a push-pull design with an internal thread in accordance with DIN 3852. The female is sealed by a cone-seat valve with a strong spring to minimise oil leakage during coupling.

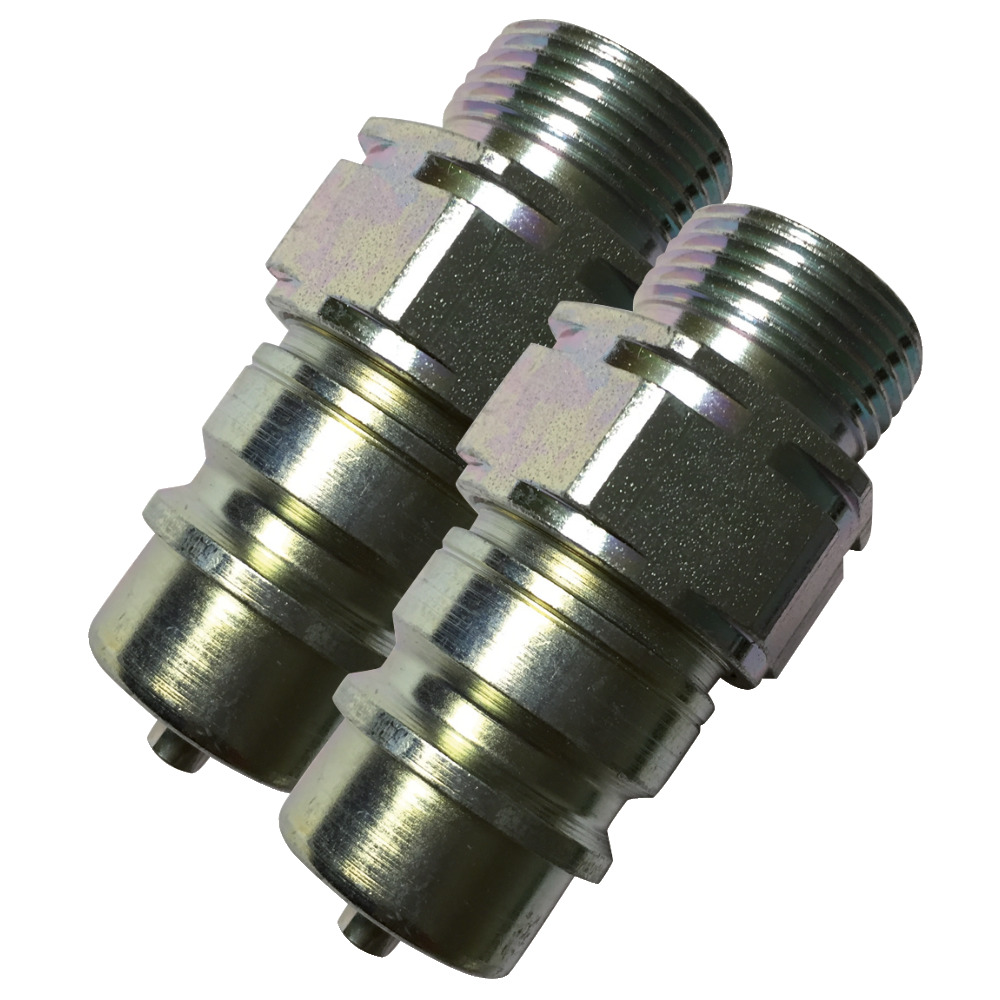

Quick-release coupling male with female thread to DIN 3852. The male is sealed by a cone-seat valve with a strong spring to minimise oil leakage during coupling.

Plug, external thread, lightweight series,Push-Pull design. Never have to worry about connecting pressurized hydraulic hose lines again! No cumbersome handling with pliers!

according to ISO standard series "~A"~ with IG series PAV1 sleeveNew: with dust protection

Sleeve, external thread, light series,Push-Pull design. Never have to worry about connecting pressurized hydraulic hose lines again! No cumbersome handling with pliers!

Sleeve, external thread, light series,Push-Pull design. Never have to worry about connecting pressurized hydraulic hose lines again! No cumbersome handling with pliers!

Plug, external thread, lightweight series,Push-Pull design. Never have to worry about connecting pressurized hydraulic hose lines again! No cumbersome handling with pliers!

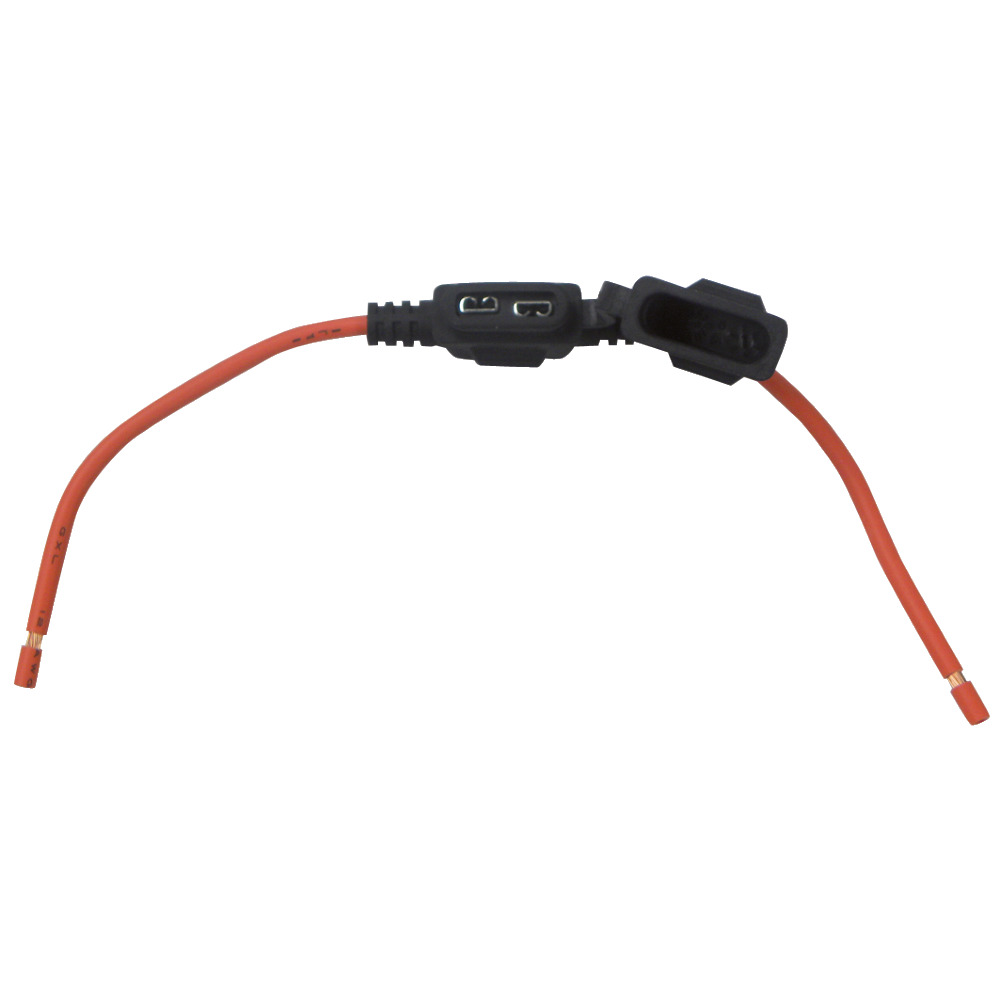

with cable for standard blade fuse max. 30 amps

Version: for plugging

Pressure force 883 kg at 180 bar, connection G M16x1.5, nominal pressure 250bar

Pressure force 1272 kg at 180 bar, connection G M16x1.5, nominal pressure 250bar

Pressure force 2261 kg at 180 bar, connection G M18x1.5, nominal pressure 250bar

Pressure force 3534 kg at 180 bar, connection G M18x1.5, nominal pressure 250bar

Pressure force 5089 kg at 180 bar, connection G M18x1.5, nominal pressure 250bar

Single-acting hydraulic cylinder (plunger cylinder) without mounting parts on the piston rod and cylinder base. The piston rod has a diameter of 20 mm and is fitted with an extension lock at the lower end. Our cylinders are provided with a locating hole for dowel pins on the rod and base for easy attachment of fastening elements. A welding bevel is screwed onto the upper end of the piston rod.Pressure force 565 kg at 180 bar, connection G M14x1.5, nominal pressure 250bar

Single-acting hydraulic cylinder (plunger cylinder) with Ø16 mm ball joints. The piston rod has a diameter of 20 mm and is fitted with an extension lock at the lower end. The ball joint have a lubrication hole for lubricating the joint with a pointed nozzle.Pressure force 565 kg at 180 bar, connection M14x1.5, T = 35 mm, nominal pressure 250bar.

Single-acting hydraulic cylinder (plunger cylinder) with Ø16 mm ball joints. The piston rod has a diameter of 25 mm and is fitted with an extension lock at the lower end. The ball joint have a lubrication hole for lubricating the joint with a pointed nozzle.Pressure force 883 kg at 180 bar, connection M16x1.5, T = 35 mm, nominal pressure 250bar.

Single-acting hydraulic cylinder (plunger cylinder) with Ø20 mm ball joints. The piston rod has a diameter of 30 mm and is equipped with an extension lock at the lower end. The ball joints have a grease nipple for lubricating the joint.Pressure force 1272 kg at 180 bar, connection M16x1.5, T = 38 nominal pressure 250bar.

Single-acting hydraulic cylinder (plunger cylinder) with Ø20 mm ball joints. The piston rod has a diameter of 40 mm and is equipped with an extension lock at the lower end. The ball joints have a grease nipple for lubricating the joint.Pressure force 2260 kg at 180 bar, connection M18x1.5, T = 38 mm, nominal pressure 250bar.
