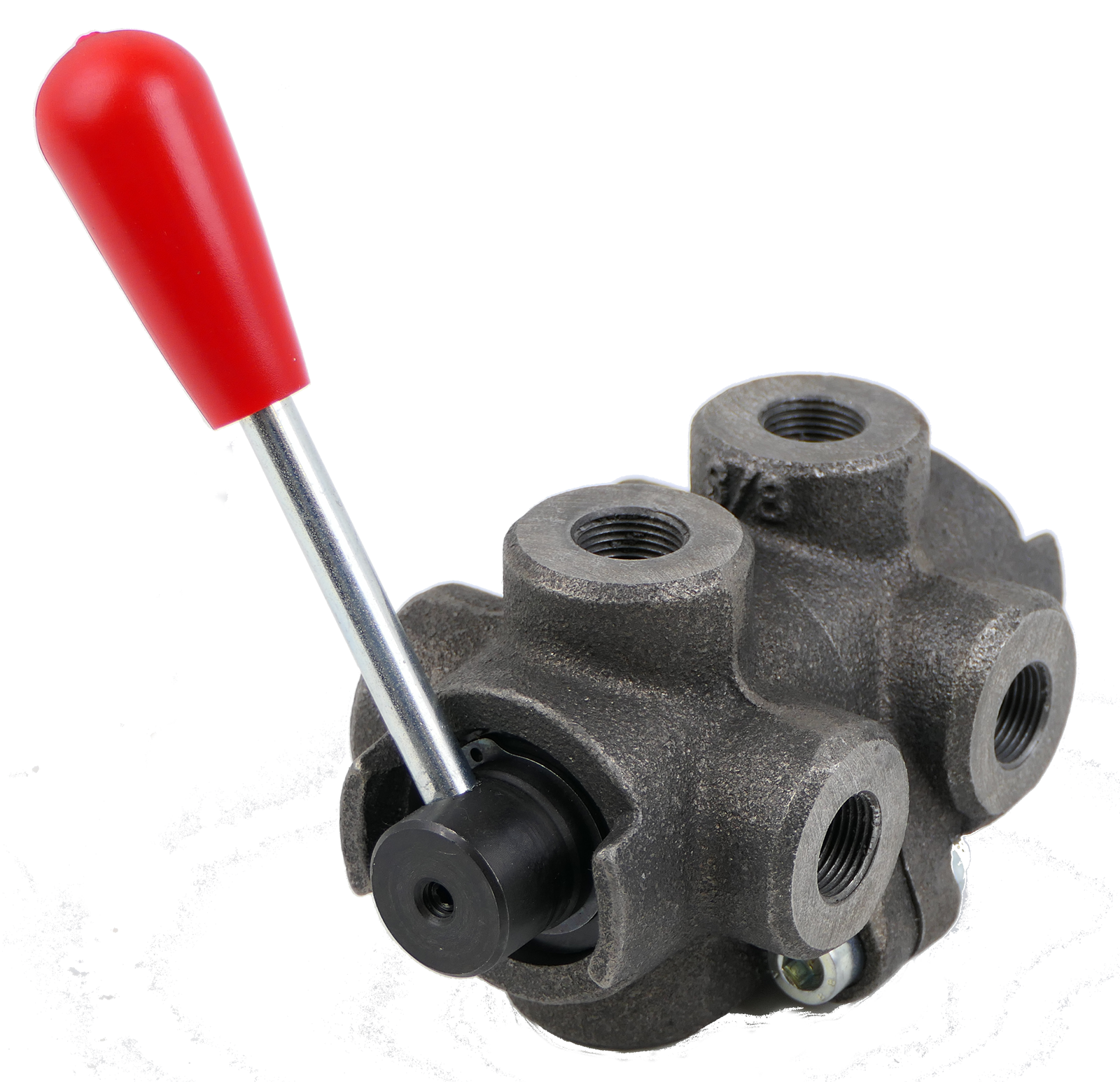

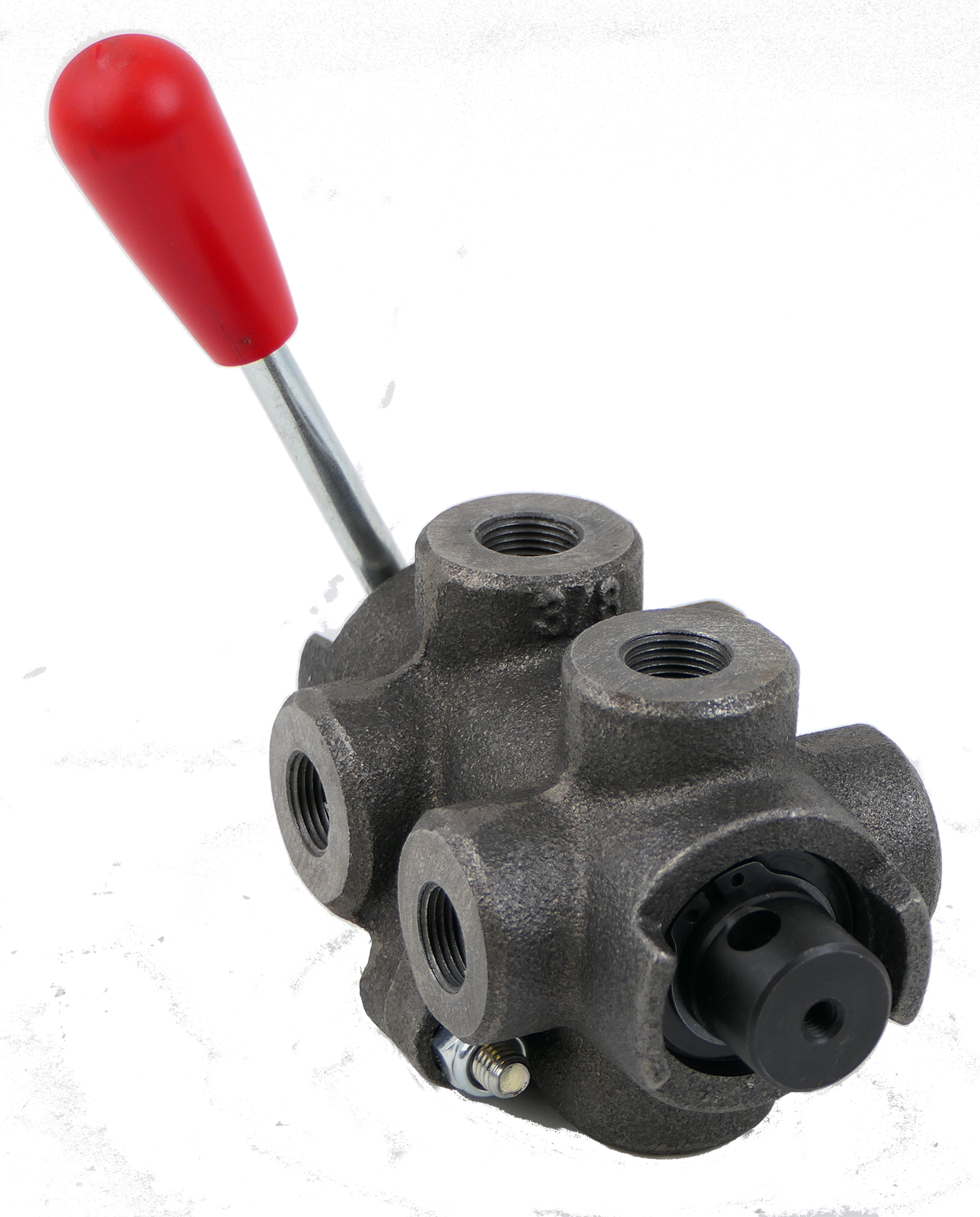

6/2-way valve, mechanically switchable, closend center, for pipe installation
NEU
6/2-way valve, mechanically switchable, closend center, for pipe installation
Beschreibung
Product information "6/2-way valve, mechanically switchable, closend center, for pipe installation"

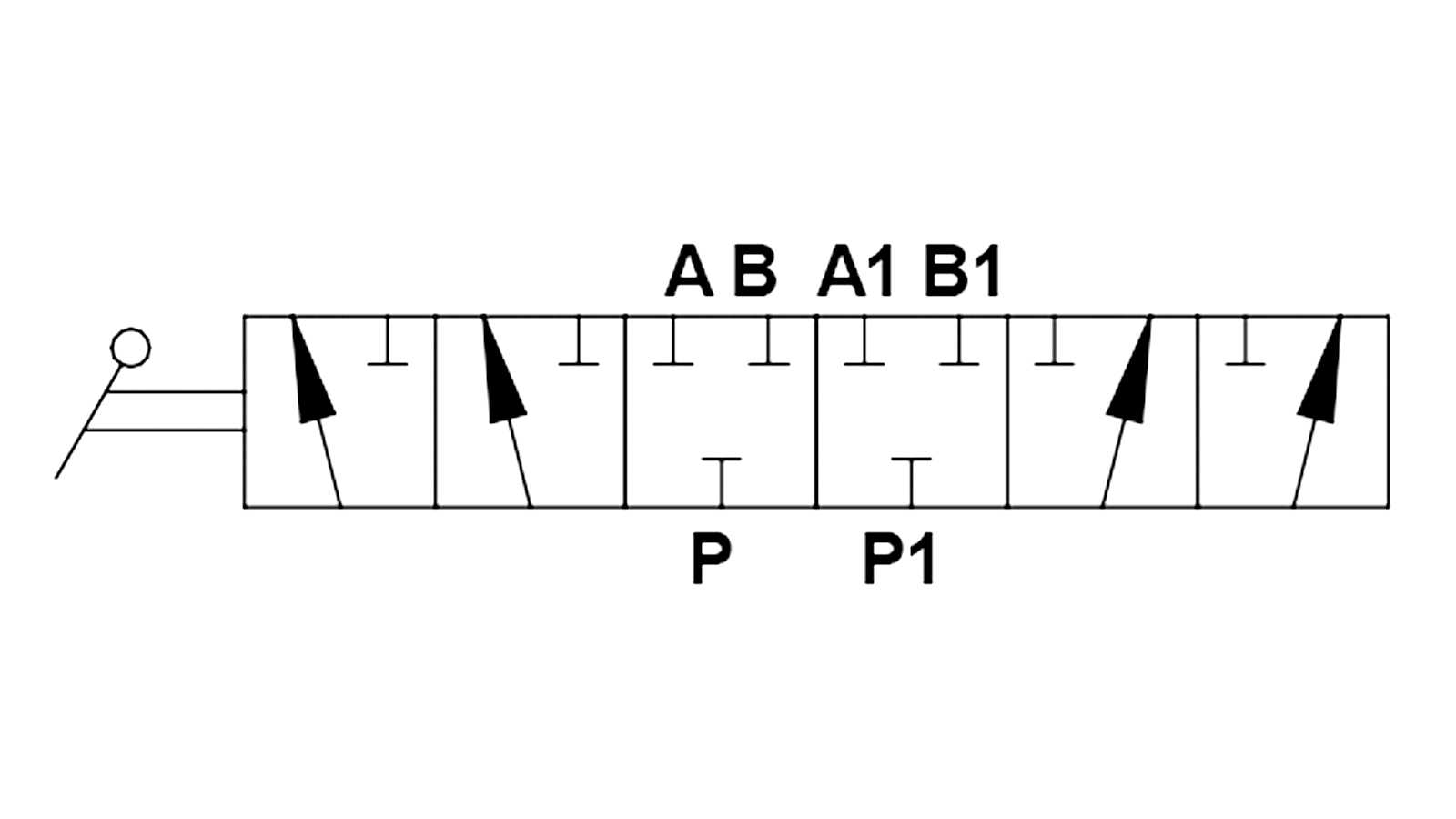

The hand-operated 6/2-way switching valve DEV functions as a hydraulic switch. This function allows several double-acting consumers to be connected and operated with a time delay. The consumers are supplied with power from the upstream control unit, where all control functions are retained.
In the centre position, all connections are closed.
In the centre position, all connections are closed.

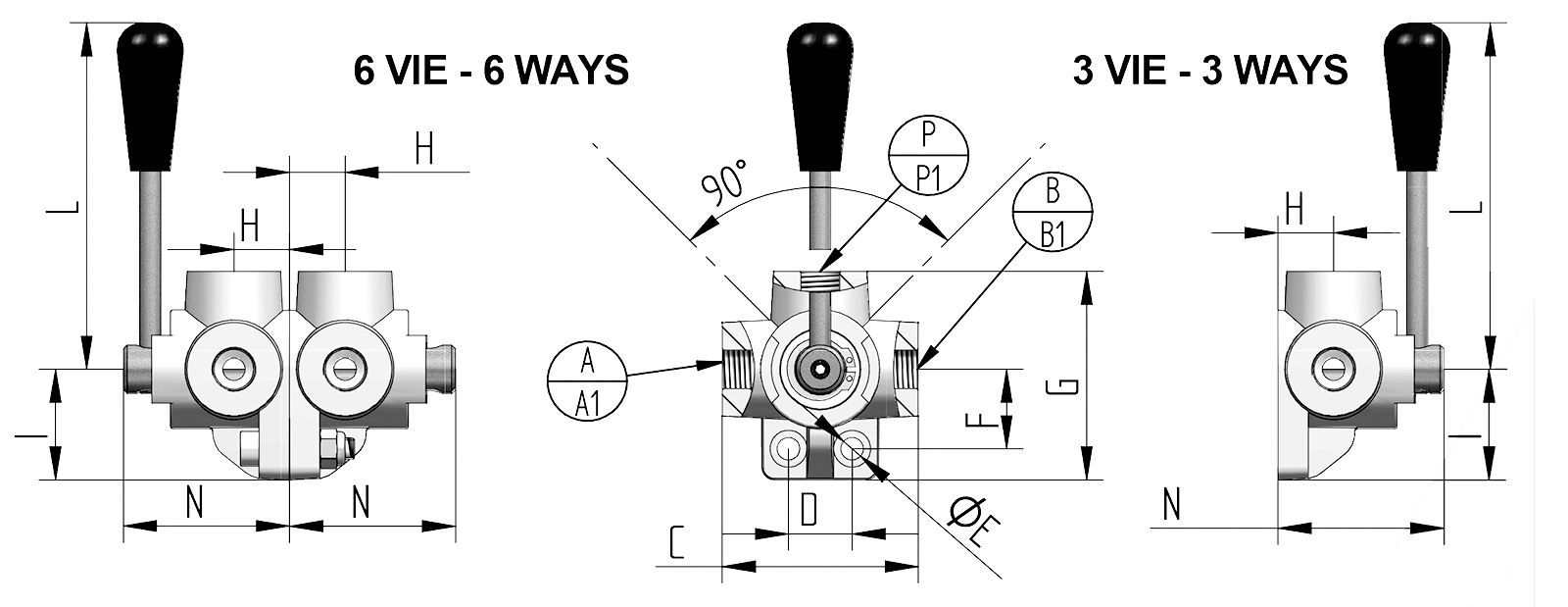

| C (mm): | 85 |
|---|---|
| D (mm): | 32 |
| E (mm): | 10,5 |
| F: | 35 |
| Flow rate (l/min): | 90+90 |
| G (mm): | 96 |
| H (mm): | 25 |
| I (mm): | 52 |
| L (mm): | 128 |
| Max. pressure (bar): | 250 |
| N (mm): | 70 |
| Thread A: | R 1/2" |
Hersteller
G.L. HYDRAULIC S.R.L.
Via Statale 249
44047
Terre del Reno Loc.
IT
[email protected]
MPN:
Downloads
Wegeventil121440.pdf
