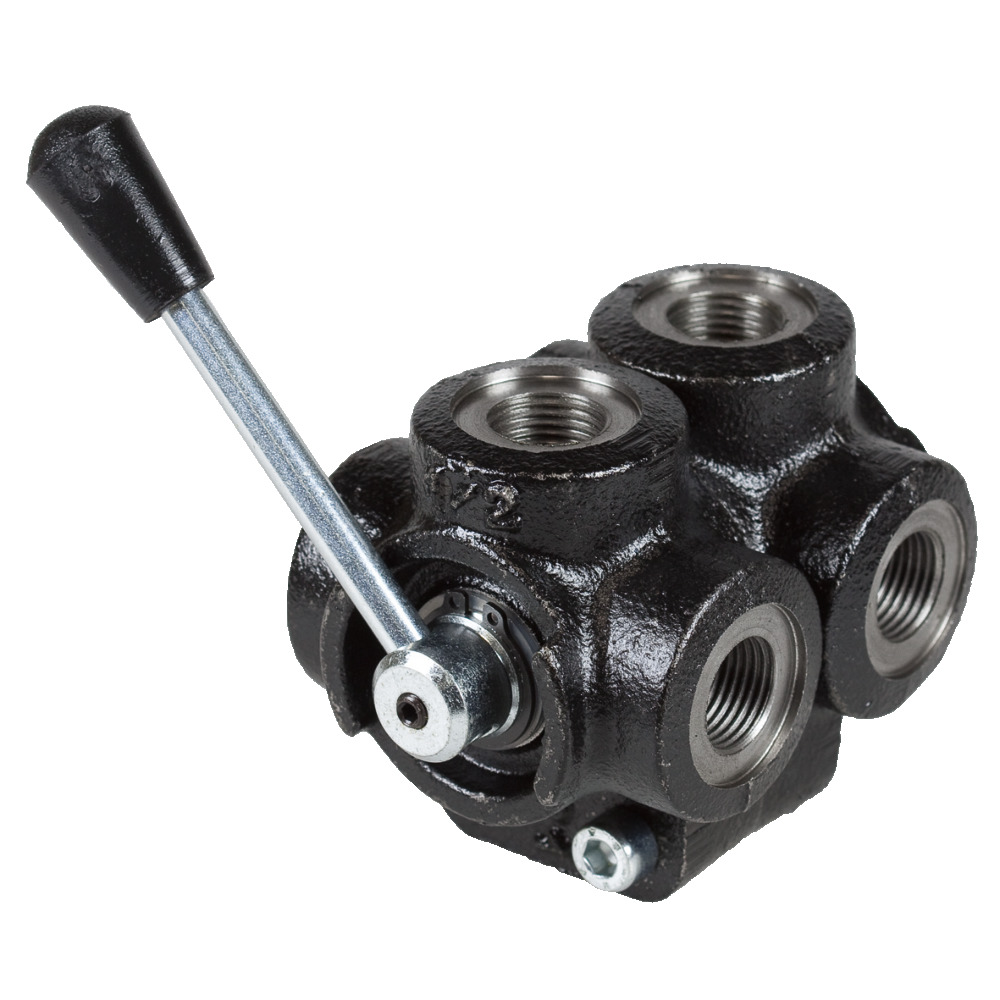

6/2-way valve, mechanically switchable, open center, for pipe installation
Beschreibung
Product information "6/2-way valve, mechanically switchable, open center, for pipe installation"
The hand-operated 6/2-way switching valve DEV functions as a hydraulic switch. This function allows several double-acting consumers to be connected and operated with a time delay. The consumers are supplied with power from the upstream control unit, where all control functions are retained.

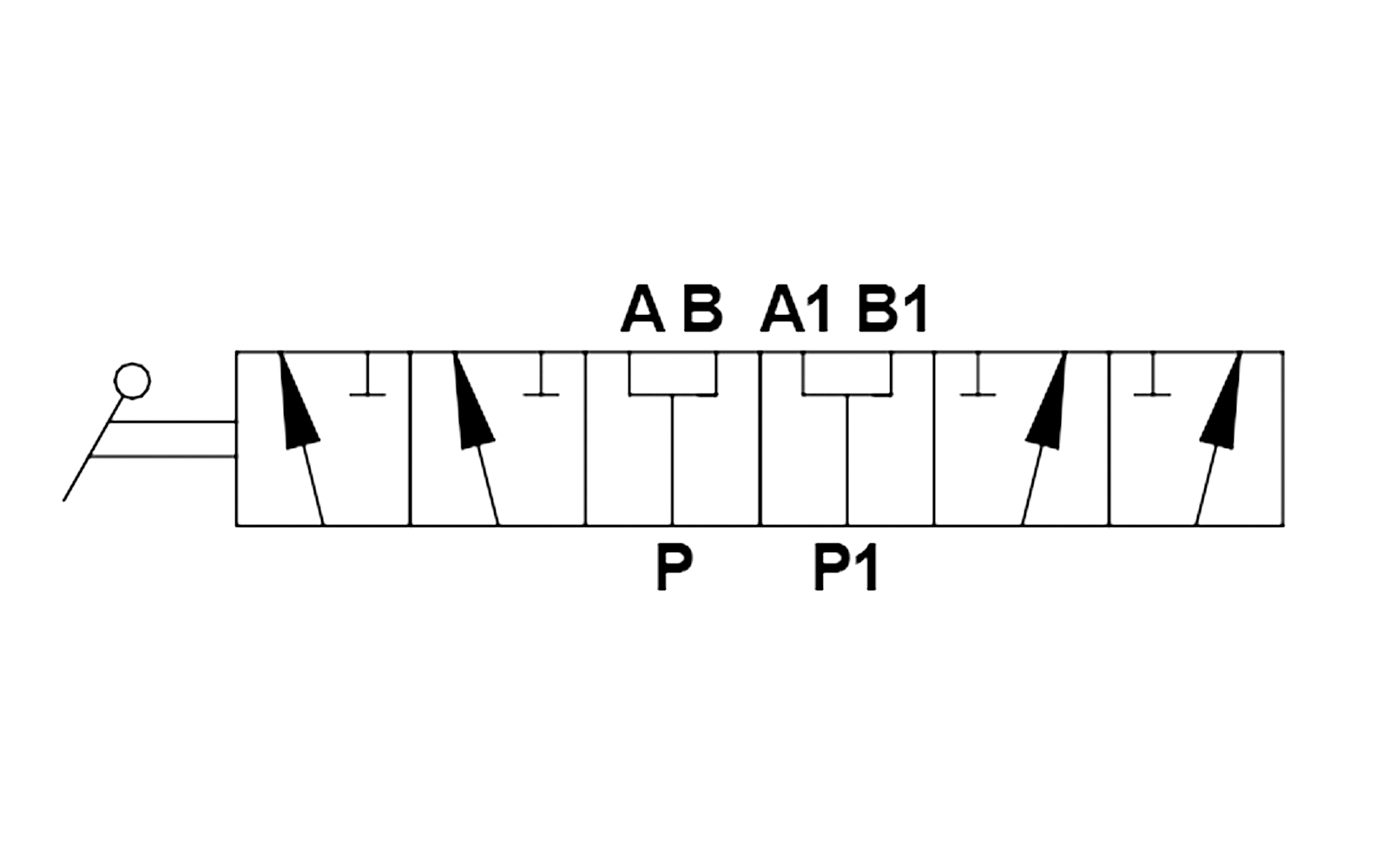

In the centre position, connections P, A and B are connected. The connections P1, A1 and B1 are also connected.
In the centre position, connections P, A and B are connected. The connections P1, A1 and B1 are also connected.

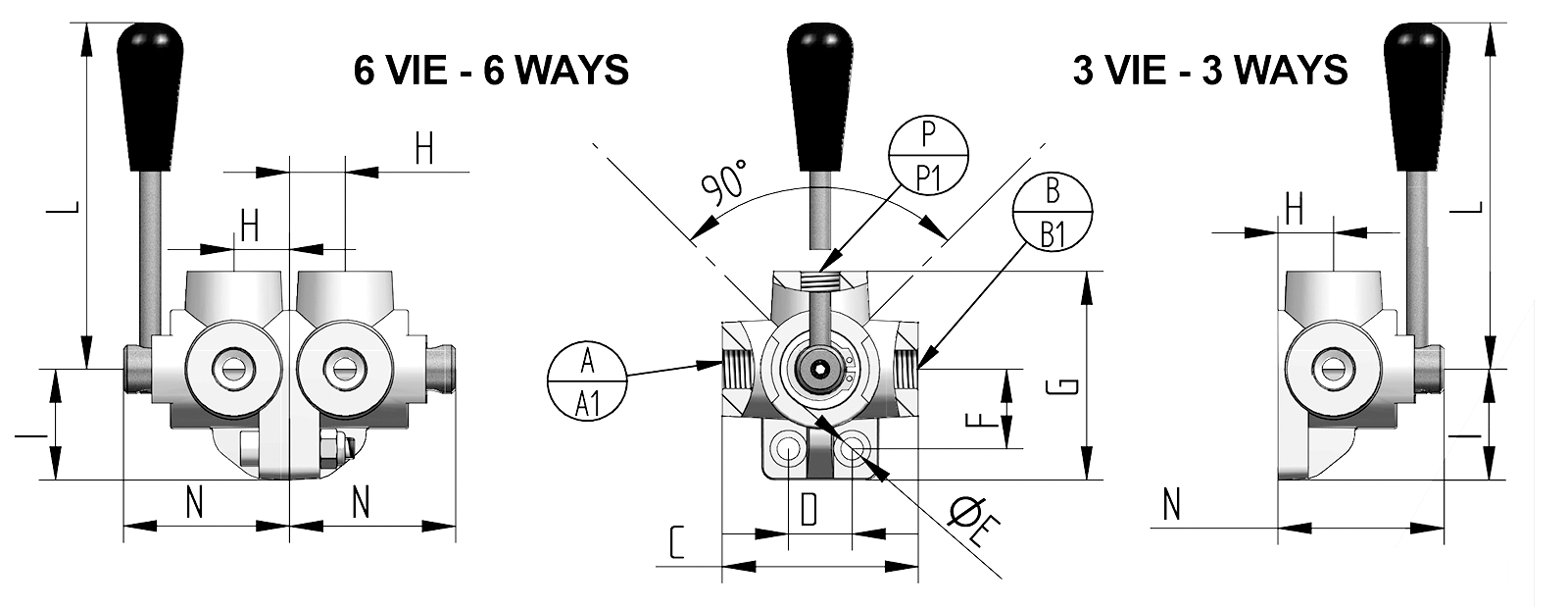

| C (mm): | 96 |
|---|---|
| D (mm): | 32 |
| Druck max. (bar): | 220 |
| Durchfluss (l/min): | 200+200 |
| E (mm): | 11 |
| F (mm): | 50 |
| G (mm): | 115 |
| Gewinde A: | R 1 Zoll |
| H (mm): | 31 |
| I (mm): | 67 |
| L (mm): | 140 |
| N (mm): | 90 |
Downloads 1
Wegeventil121440.pdf
