Mower bar replacement parts
Suitable for Reform Type RM58, 158, 110, 111, 111S, 112, 115, 116, 131, 316.

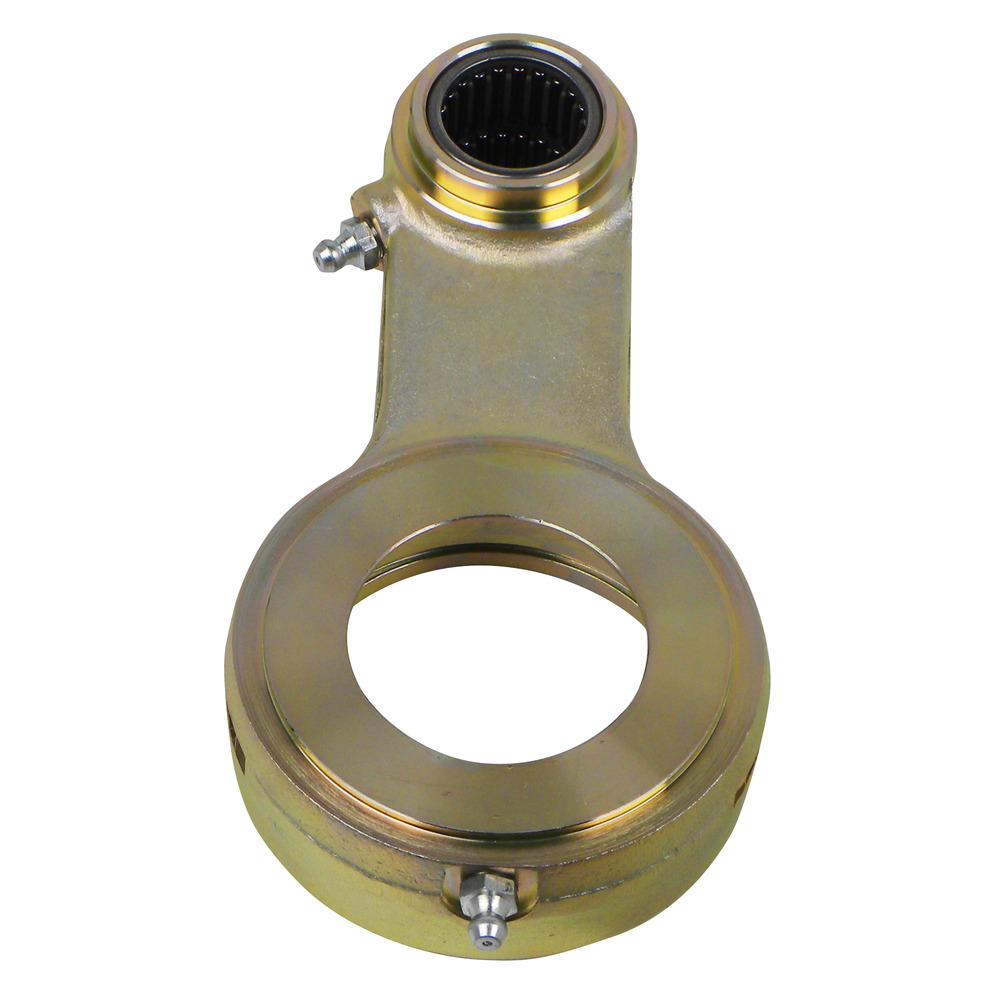

Rear crank bearing housing for driving the bedknife on Busatis and ESM double knife mowers.
Compression spring suitable for the fastening screws of the swath plate. Length 35mm, outer diameter 28mm, spring thickness 5.8mm
Compression spring suitable for the fastening screws of the swath plate. Length 36mm, outer diameter 20mm, spring thickness 4mm
Compression spring suitable for the fastening screws of the swath plate. Length 47mm, outer diameter 22mm, spring thickness 4mm
Cone nut with thread M16x1.5 for measuring head with serrated holder for Aebi, BCS and Reform.
Cone spigot suitable for Aebi cutterhead with clamping claw and for the cutterhead for ESM municipal and universal beams. The spigot has an M10 internal thread and the cone has a diameter of 16 - 18 mm.
Conical screw M8x1x19 with wrench size 14mm. Suitable for Aebi, BCS and Reform.
Tapered screw M8x1x21 with wrench size 13mm. Suitable for Aebi, BCS and Reform.
Counterblade on the left for Rapid motor mowers with belt grassing.
Counterblade on the right for Rapid motor mowers with belt grassing.
630605E, 1 piece per knife
Cutter head complete with wear plates for sliding block size 38x38mm and with centre bolt for centring the cutter head. The cutter head can be fastened with 4 screws. The hole spacing of the screws is 101.6mm and 152.4mm. The holes are designed for M8 screws.
Cutter head complete with cutter head cover for driving pin wrench size 20mm.
Cutter head complete with fastening screws. Suitable for Aebi BM5 and BM8 with Italian bar, BCS Series 600 - 700 and Series 94 Speciale SF and Reform Series 600 and 700 with European bar.We would like to point out that Aebi and Reform have different cutter bars for this cutter head . This means that the length of the fastening screws is not sufficient. You can order a longer taper screw and knife head screw as an accessory (see also below) under the following FAIE numbers: ~ ~Taper screw M8x1x21mm, FAIE number 107996Knife head screw M8x1x20mm, FAIE -Number 107995
